New-Tech™ Fan Platform Assembly Pictures (3 of 12)
Previous Fan PictureNext Fan Picture
New-Tech Fan Platform Picture #3

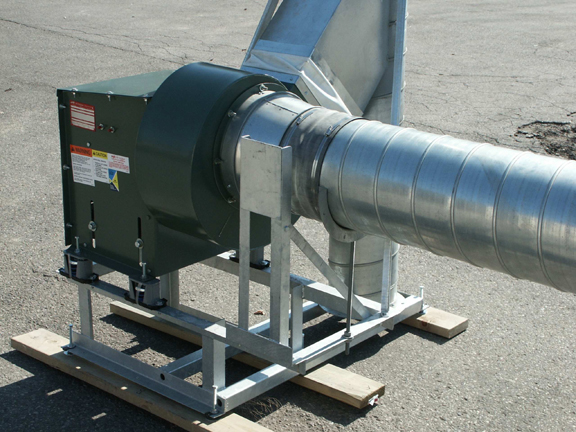

  • Fan Platform Assembly Picture FP-03
  • Close Up View of he same utility exhaust Fan Assembly shown in pictures FP-01 and FP-02.
  • This picture shows a close up view of the vibration isolator inlet, fan disconnect bracket and spring style fan vibration isolators
