Down Draft Tables
The Down Draft Tables pull gases and particulate down, maximizing containment while minimizing airflow.
Fume & Vapor Down Draft Table
MERV 18 DOWN DRAFT TABLE
Down Draft Table Pictures

CDC Information:
  •   Protecting Workers from Exposure

•   What kinds of engineering controls should mail-handling operations consider implementing




New-Tech Logo
TOLL FREE: (866) 631-8324
FAX: (989) 631-8362
Email: Technical Sales

New-Tech's MERV 18 HEPA Filtered Down Draft Table
Providing 99.99% efficient capture of 0.3 micron particles
  • The MERV 18 HEPA Filtered Down Draft Table has been designed to work in Mail Rooms or on Remediation Projects.
  • The MERV 18 HEPA Filtered Down Draft Table provides 99.99% efficient capture of 3 micrometer particles, (IEST-RP-CC001.3, Type C), as it draws the air down through the perforated top into the HEPA filter.
  • The MERV 18 HEPA Filtered Down Draft Table has a filter module designed specifically for hazardous applications. The MERV 18 HEPA filter is handled as a completely contained module, and can be 100% incinerated.
  • The MERV 18 HEPA Filtered Down Draft Table re-circulates room air thus saving energy and improving room air quality.  GREENING YOUR FACILITY
HEPA Down Draft Table Photographs

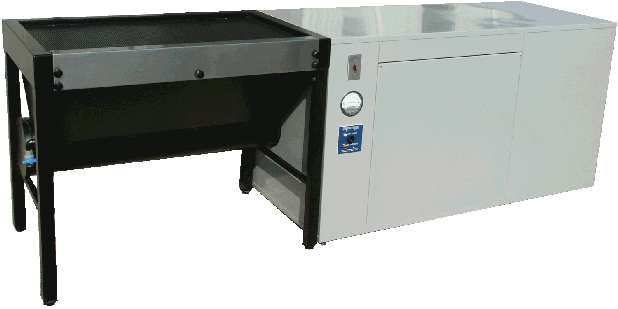

New-Tech's HEPA Filtered Down Draft Table

 PDF of MERV 18 HEPA Filtered Down Draft Table    MERV 18 HEPA Filtered Down Draft Table Flier

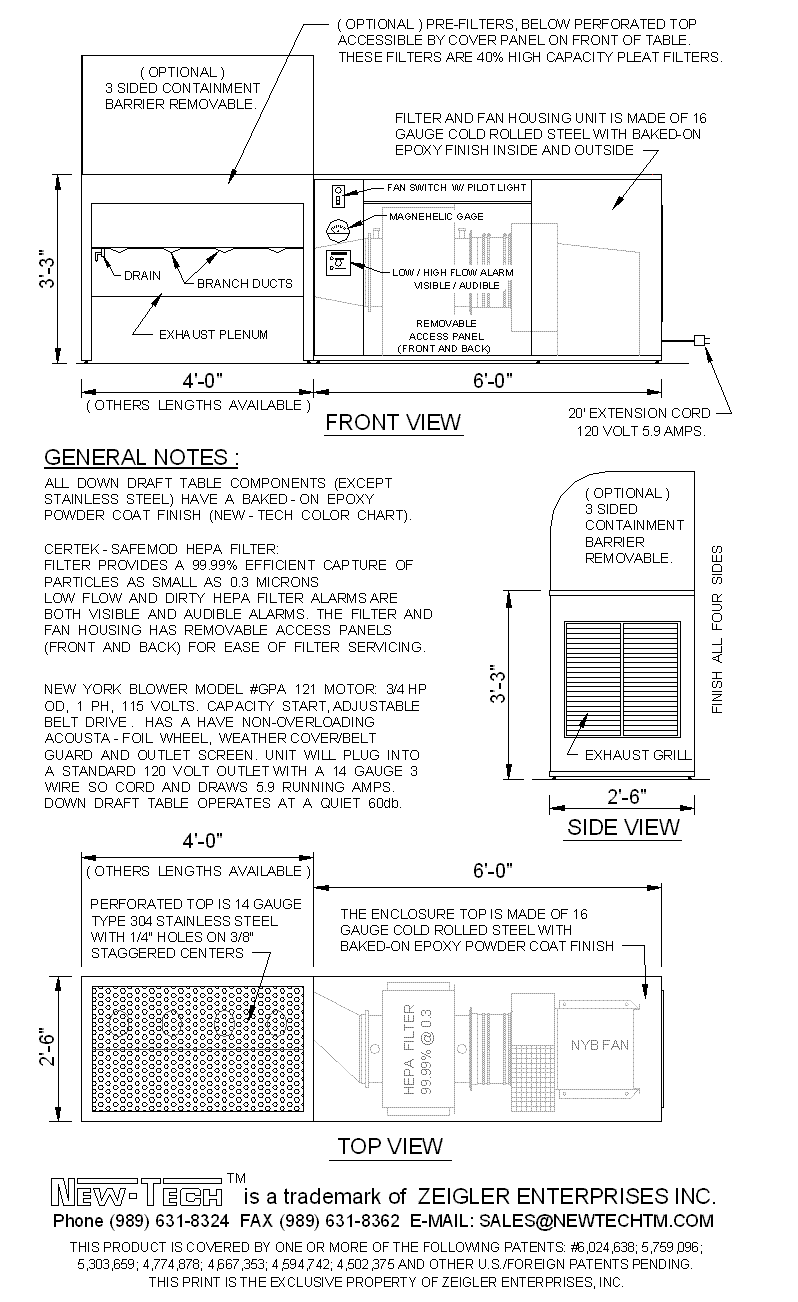

  • The MERV 18 HEPA Filtered Down Draft Table has a four or five foot containment surface with an adjoining six foot filter/fan box that has the MERV 18 HEPA filtration module and quite fan system below.
  • The MERV 18 HEPA Filtered Down Draft Table plugs into your standard 120 volt receptacle utilizing a SO cord, the four foot containment surface unit requires only 8.6 amps and the five foot containment surface unit requires 12.0 amps.
  • The MERV 18 HEPA Filtered Down Draft Table comes with Fan Pilot Light, Airflow Indicator and audible/visual Dirty Filter Alarm.

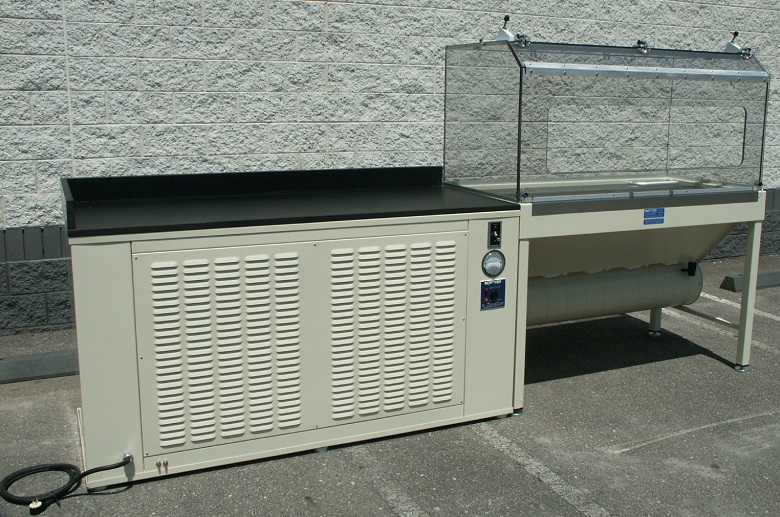

  • Optional "Wing Walls" or a Polycarbonate Containment Enclosure (pictured above) are also available for enhanced containment.
  • An optional Epoxy Top (pictured above) is also available on the top of the adjoining filter/fan box.
  • Optional MERV 8 Pre-Filters are also available below the perforated surface to extend the life of the MERV 18 HEPA filter.
 Quick Links to MERV 18 HEPA Filtered Down Draft Table Pictures
(DDT-M18-01),   (DDT-M18-02),   (DDT-M18-03),   (DDT-M18-04),   (DDT-M18-05), (DDT-M18-06)
