New-Tech™ Fan Platform Assembly Pictures (10 of 12)
Previous Fan PictureNext Fan Picture

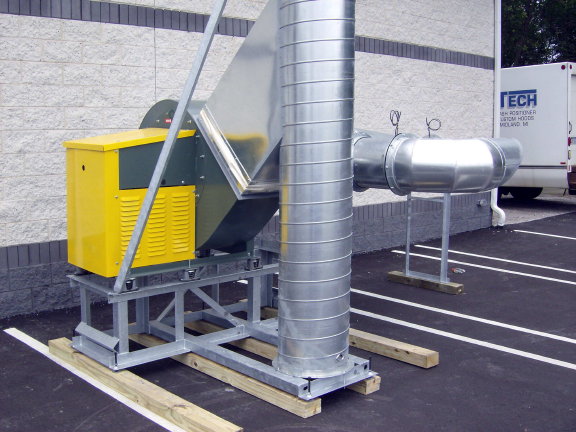

New-Tech Fan Platform Picture #10 (8-124)
  • Fan Platform Assembly Picture FP-10  (8-124)
  • Side/Rear View of the same utility exhaust Fan Assembly shown in pictures FP-09.
  • This view shows a close up view of the exhaust stack base, exhaust fan platform and the roof sleepers.
