New-Tech™ MERV 18 HEPA Down Draft Table Pictures
(3 of 6)
|

|
 |
- MERV 18 HEPA
Filtered Down Draft Table Picture DDT-M18-3

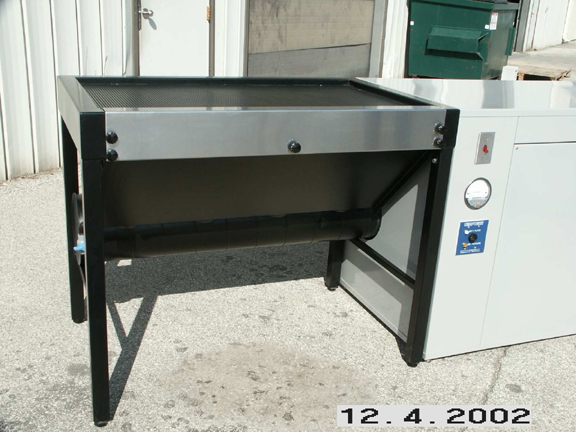

- Close up View of a Custom Self Contained HEPA Filtered Down Draft Table Assembly shown in picture DDT-M18-1
and DDT-M18-2 with the Wing Walls removed.
- This picture shows the stainless steel removable panel on the face of the down draft table that allow the user access to the 2" thick,
MERV 8 Pre-Filters that are located under the perforated work surface. This
MERV 18 HEPA Filtered Down Draft Table Assembly is designed for the testing of particles. The
MERV 8 pre-filters capture large particles prior to being
caught in the MERV 18 HEPA Filter, which lengthens the overall life of the HEPA filter.
- On the filter and fan enclosure, is a illuminated power switch, a
Magnehelic gauge (for visible airflow indication), a white clean filter indicator light and a yellow dirty filter indicator light and a dirty filter audible alarm.
|
|
