New-Tech™ Vertical Sash Fume Hoods

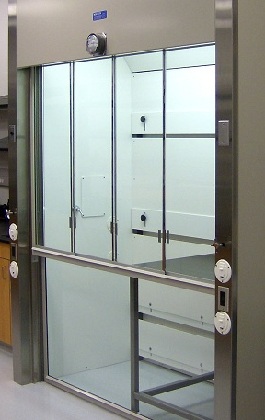

Vertical Sash Hood Pictures


VERTICAL SASH FUME HOODS

  • Available in sizes ranging from 4 foot wide to 10 foot wide.
  • Each sash is fully framed ensuring maximum protection.  Sashes can be made to any size allowing optimum equipment access.  Within any vertical sash, horizontal sashes/doors can be added to allow even easier access, minimizing exposure and saving energy.
  • Standard Exterior finishes available are powder coated steel, Stainless Steel or Polypropylene.
  • Standard Interior Finishes are Non-Asbestos Cement Board, White Epoxy Painted Non-Asbestos Cement Board, White Chemical Resistant Fume Hood Liner (Fiberglass Reinforced Polyester Resin), Stainless Steel or Polypropylene. (Other Interior Finishes are available upon request)
  • Optional pass through conduits allow for an easy and organized way to plug in equipment within the fume hood to face mounted receptacles.  Each pass through conduit is covered with a low leakage flip cover.
New-Tech Bench Top Fume Hood
  • Optional Electrical and Plumbing fixtures can be shipped loose or Pre-Wired / Pre-Plumbed prior to shipment.
  • Optional Magnehelic Gages can be shipped loose or Pre-Installed prior to shipment. Magnehelic Gages are used as an independent visual indication of airflow.
  • Optional TSI Variable Air Volume fume hood controls can be shipped loose or Pre-Installed prior to shipment.
  • All New-Tech Custom Fume Hoods with Horizontally Sliding Sashes/Doors are designed to pass the ASHRAE 110 As Manufactured Test.
Quick Links to Vertical Sash Fume Hood Pictures
(VH-01),   (VH-02),   (VH-03),   (VH-04),   (VH-05),   (VH-06),   (VH-07),
(VH-08),   (VH-09),   VH-10),   (VH-11),   (VH-12),   (VH-13)
