New-Tech™ Fan Platform Assembly Pictures (1 of 12)
Previous Fan PictureNext Fan Picture
New-Tech Fan Platform Picture #1

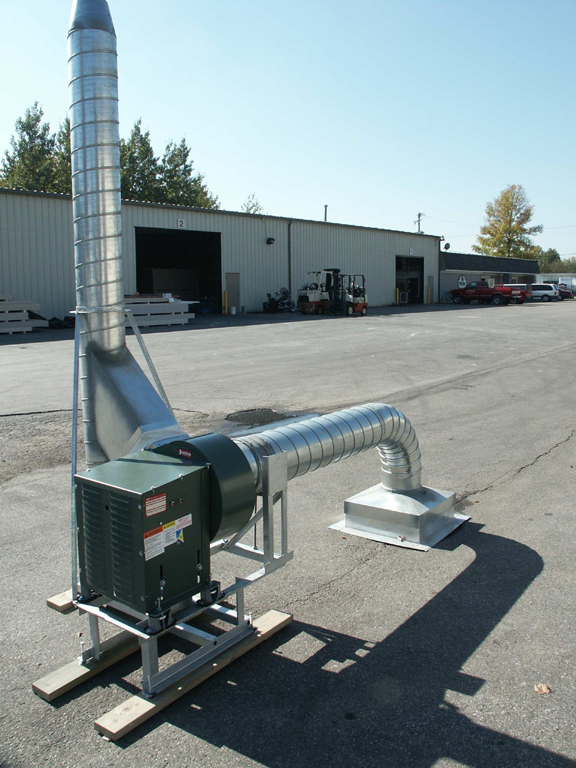

  • Fan Platform Assembly Picture FP-01
  • Rear View of a utility exhaust Fan Assembly.
    (set up in parking lot for photo purposes only)
  • This complete assembly can be furnished with all components needed from the roofline up to the exhaust stack outlet.
  • This unit is easily assembled after it is placed on customer’s roof.
  • The custom fan platform is fabricated from cold rolled steel, welded and protected with a hot dipped galvanized finish and includes an electrical disconnect switch mounting bracket.
  • The assembly includes a galvanized roof curb, curb cap, either 1-1/2 or 2 Radius 90 degree elbows; galvanized connecting ductwork including EDPM inlet vibration isolators and outlet vibration isolators and a galvanized ventilation stack with support arms that eliminates the need for guy-wires.
  • The exhaust stack includes a reducer cone to provide proper exhaust velocity.
  • New-Tech normally furnishes (not shown in this photo) a PVC back draft damper that does not have any metal components that could corrode and cause this damper to stick open.
