New-Tech™ Fan Platform Assembly Pictures
(11 of 12)
|

|
 |

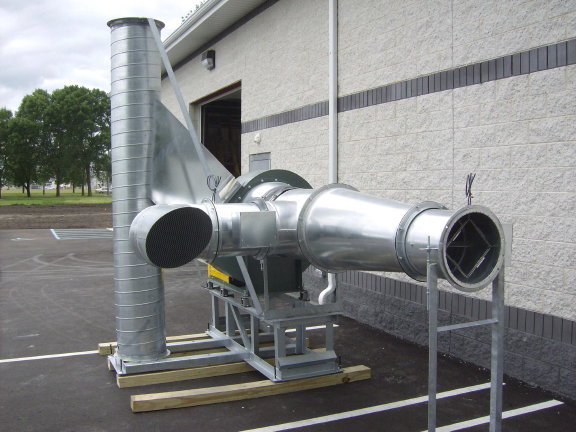

- Fan Platform Assembly Picture FP-11 (8-124)
- Close Up View of he same utility exhaust Fan Assembly shown in pictures FP-09 and FP-10.
- This picture shows a close up view of the inlet exhaust damper and the relief damper used to balance the amount of exhaust airflow being exhausted from the lab and to fresh air from outside. These dampers are pneumatically controlled by the Variable Air Volume Controls in the lab.
|
|
